What is a Bed Side Table
A Bed Side Table nightstand night table or bedside cabinet is a small table or cabinet designed to stand beside a bed or elsewhere in a bedroom.
Bed Side Table are often used to support items that might be useful during the night, such as
- table lamp
- alarm clock
- reading matter
- phone
- eyeglasses
- drinking water
- Medicine etc......

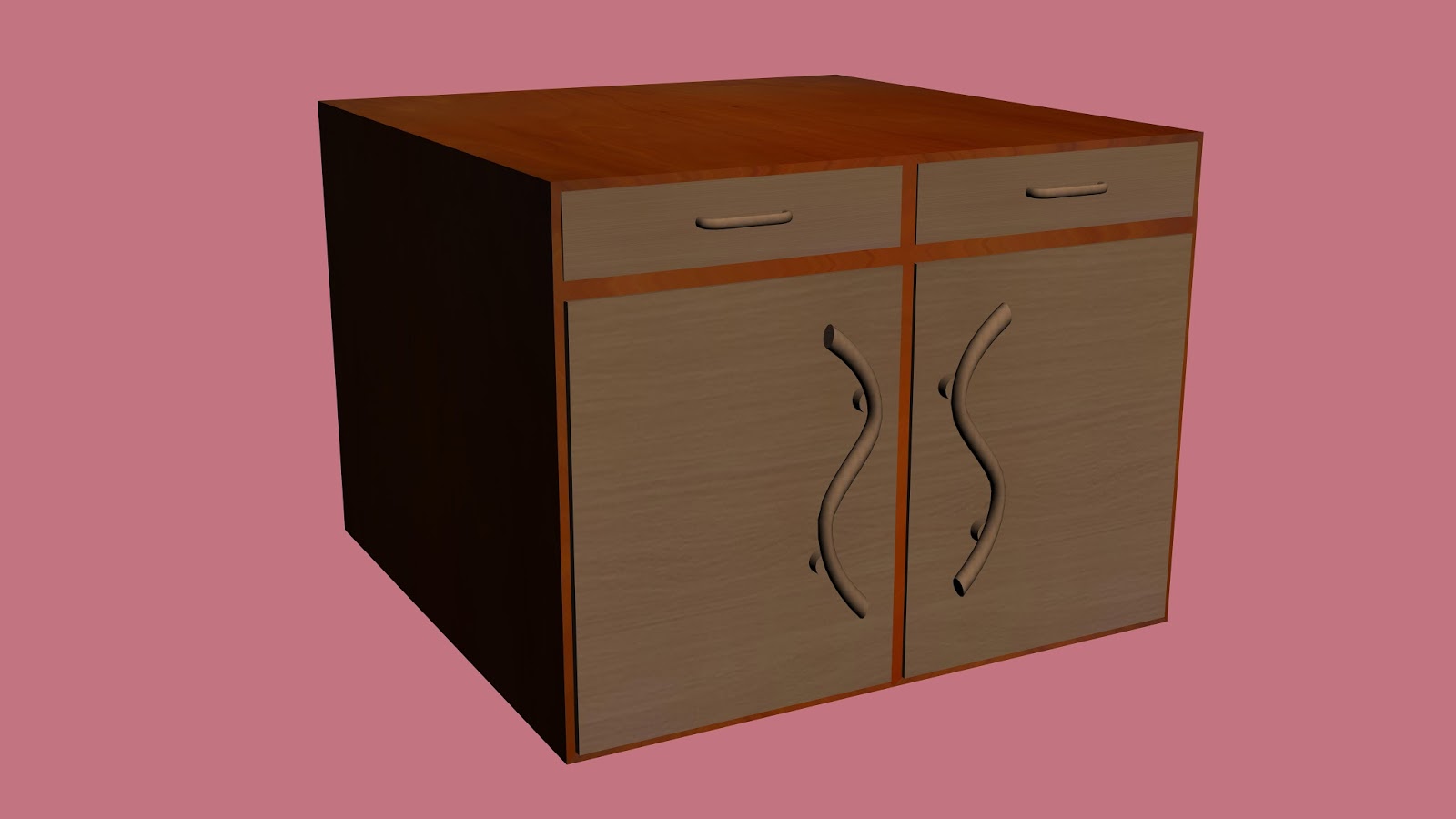

Picture of Bed Side Table
How to Model a Bed Side Table in Autodesk 3ds MAX | Software Planet
Part-1 Make basic model (steps 1-18)
1. Open 3ds MAX by clicking START menu and type in search bar 3ds max and press ENTER
3. Go to Create panel → Geometry → click on Box
4. Draw a Box Length = 2ft Width = 2 ft Height = 18 inch
5. Right click on box Covert to → convert to editable poly
6. Press F3 for Wireframe View
7. Go to Modify → click on Edge
8. Select right and left edge of box with Ctrl
9. Go to Modify → Edit edges and click on Connect Settings button
10. In connect edges window type Segments = 1 Pinch = 0 Slide = 65 press OK
11. Now select front 3 edges with Ctrl and and again click on Connect Settings button
12. In connect edges window type Segments = 1 Pinch = 0 Slide = 0 press OK
13. In Modify click Polygon and select all front 4 polygons with Ctrl
14. Go to Modify → Edit polygons and click on Inset Settings
15. In Inset polygons window choose Inset type = by polygon Inset Amount = 0.3 inches and press OK
16. Now click on Extrude Settings button
17. In Extrude Polygons Window Extrusion Type = by Polygon Extrusion Height = -23.5 and press OK
18. Now press Z for Zooming to selected object and press F9 for Render Production.
After Completing these 18 Steps your Model should Look like This
IF NOT Then Verify ⬆ Those all 18 Steps
 | |||
| part-1 Bed side table Image after 18 Steps |
